Evolv Mobile

Manufacturer Website

Inquiry Product
Category: Age Categories:

Description

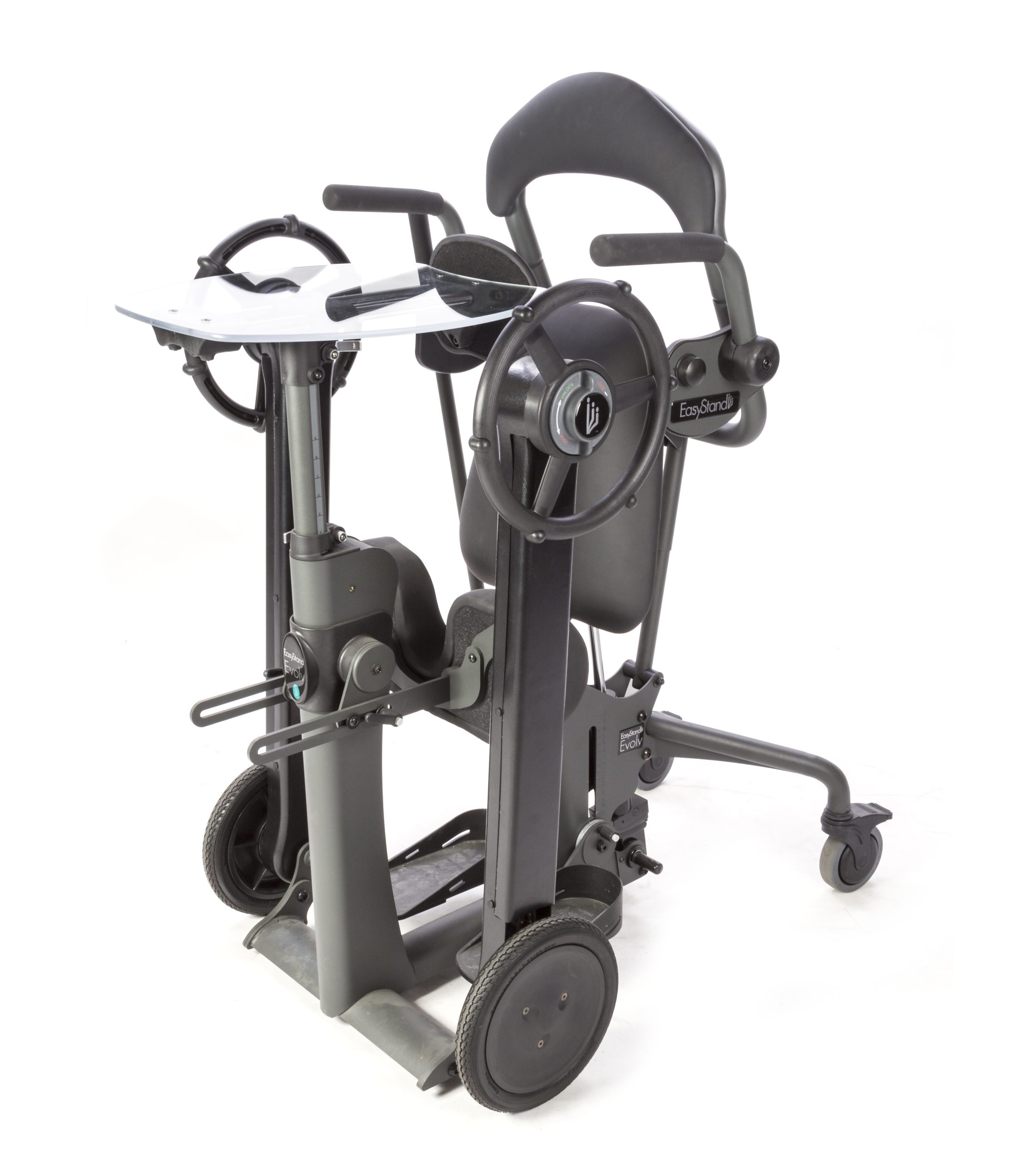

Stander with mobile frame style for adults.


This stander allows self-propulsion and includes flip-away knee pads and push rims. It features drive wheel locks and an enclosed chain drive mechanism. Please note that this option does not come with independent knee pads.
The Evolv’s design caters to users with varying levels of support needs, from minimal to significant positioning requirements for transitioning from sitting to standing. With a wide range of over 60 positioning options, developed in consultation with therapists, the Evolv can accommodate even the most severe disabilities. Moreover, it is well-suited for progressive conditions like Multiple Sclerosis and ALS, as its adaptable positioning options can be modified or added over time to meet changing needs.

RTD Easystand MiniProductBrochure

Download File

Base Unit

Approximate Height Range5’0″-6’2″152-188cm
Weight Limit280lbs127kg
Maximum Mass (fully loaded unit)153lbs69kg
Seat Depth Range (from seat pivot)18”-23”46-58cm
Seat to Footplate Range (from seat pivot)14”-21”36-53cm
Knee Width (center to center)9”23cm
Kneepad Depth Range (from seat pivot)2”-7”5-18cm
Seat Height21.5”55cm
Seat Dimensions19″Wx21.5″L48x54cm
Standard Tray Size21”x24”53x61cm
Tray/Chest Pad Depth Range (from seat pivot)0”-10.5”0-27cm
Standard Tray Height Range (from seat pivot)15.5”-30.5”39-77cm
Footprint (at widest points)26.5”x33.5”67x85cm
Weight of Basic Unit104lbs47kg
Frame ColorCharcoal
Standard Upholstery ColorBlack
Locking Caster Diameter5″13cm
Footplates-Plantar10° in 3 increments(not Glider)
Footplates-Dorsi10° in 3 increments(not Glider)
Footplates- Toe-out15 degrees in 3 increments(not Glider)

Shadow Tray

Shadow Tray 12″ Height from seat (acrylic tray is 1″ shorter)12.25″31cm
Weight of Evolv w/Shadow115lbs52kg
Shadow Tray Size21”x24”53x61cm

Mobile

Weight of Mobile Option38lbs17kg
Weight of Evolv Mobile (all sizes)135lbs61kg
Footprint (including pushrims)28.5″x36″72x91cm
Wheelbase29.75″76cm
Pushrim Height (from floor)45″114cm
Wheel Locks1/4 turn rotation to lock/unlock
Drive Chain Tensioning MethodSelf -Tensioning Gravity Operated
Mobile Tray Size18″Wx19″L46x48cm

Options

Front Swivel CastersAdd 5″ W to Footprint13cm
Adjustable/Removable Actuator Handle Range+/- 15° from neutral
T-Style Handle-Extends (each direction)6”15cm
Foot straps- Fits foot height4″-6.5″10-17cm
Secure Foot Straps-Fits foot height4”-6.5”10-17cm
Seat – Size of Roho® Insert12”x12”30x30cm
Transfer Seat Dimensions23″Wx 21.5″L58x54cm
Hip Supports-Medium Width10″-15″25-38cm
Hip Supports-Large Width12″-17″30-43cm
Hip Supports Pad Size4″Wx6″H10x15cm
Independent Kneepad Height Range (from seat pivot)+5″ to -5.25″+13 to -13cm
Independent Kneepad Depth Range (from front of seat)1″-7.5″3-19cm
Independent Kneepad Width Range (center to center)9”-13.5”23-34cm
Independent Kneepad Size7″Wx9″H18x23cm
Independent Kneepad Roho Insert Size5″Wx7.5″H13x19cm
Clear Acrylic Tray Size21”x24”53x61cm
Oversized Clear Tray Size29″x22″74x56cm
Angle Adjustable Tray (Angle range)0-35°
Large Contoured Chest Pad (Approximate size)9.5”x15”24x38cm
Low Back (Flat/Contoured) Height from Seat13”33cm
High Back (Flat/Contoured) Height from Seat19”48cm
Velcro Positioning Belt (Hip Circumference)26”-55”66-140cm
Positioning Belt w/ Airline Buckle (Hip Circumference)26”-55”66-140cm
Small Chest Strap-Pad Size5″Wx19″L13x48cm
Small Chest Strap-fits users chest measuring30″-46″76-117cm
Large Chest Strap-Pad size5″Wx24″L13x60cm
Large Chest Strap-fits users chest measuring34″-54″86-137cm
X-Style Chest Vest-Medium11”Lx9.5″W28x24cm
X-Style Chest Vest-Large12.5”Lx10”W32x26cm
Y-Style Chest Vest-Medium17.5”Lx11.5”W44x29cm
Y-Style Chest Vest-Large20.5”Lx12.5″W52x32cm
High Mount Chest Vest Bracket Positions18″, 19″, 20″, 21″ H (above hip Pivot)46, 48, 51, 53cm H (above hip Pivot)
Lateral Supports-Medium Width Range8”-16.5”20.3-41.9cm
Lateral Supports-Large Width Range11″-19.5″27.9-49.5cm
Lateral Supports-Fore/Aft Pad Adjustment3″7.5cm
Lateral Supports-Height Adjustment by swapping brakets left/right2″5cm
Lateral Supports-Height Adjustment via mounting bolts on the pads2″5cm
Lateral Supports-Height Range of lateral pad from hip pivot4″10-30cm
Lateral Supports-Rotational setting of lateral pad via bolt mounting holes90, 180, 270, or 360° positionLong portion of pad may be installed pointing up, down, fore or aft.
Lateral Support Pad Size4″Wx6″H10x15cm
Head Support-Medium Height Range (from top of the seat to middle of headrest)21”-30.5”53-77cm
Head Support-Large Height Range (from top of the seat to middle of headrest)24”-33.5”61-85cm
Head Support-Depth Range3.75″10cm
Head Support-Fore/Aft Adjustment in relation to back padFlush with back aft to 3-3/40 to +9.5cm
