Strapstand

Manufacturer Website

Enquire Today
Category: Age Categories:

Description

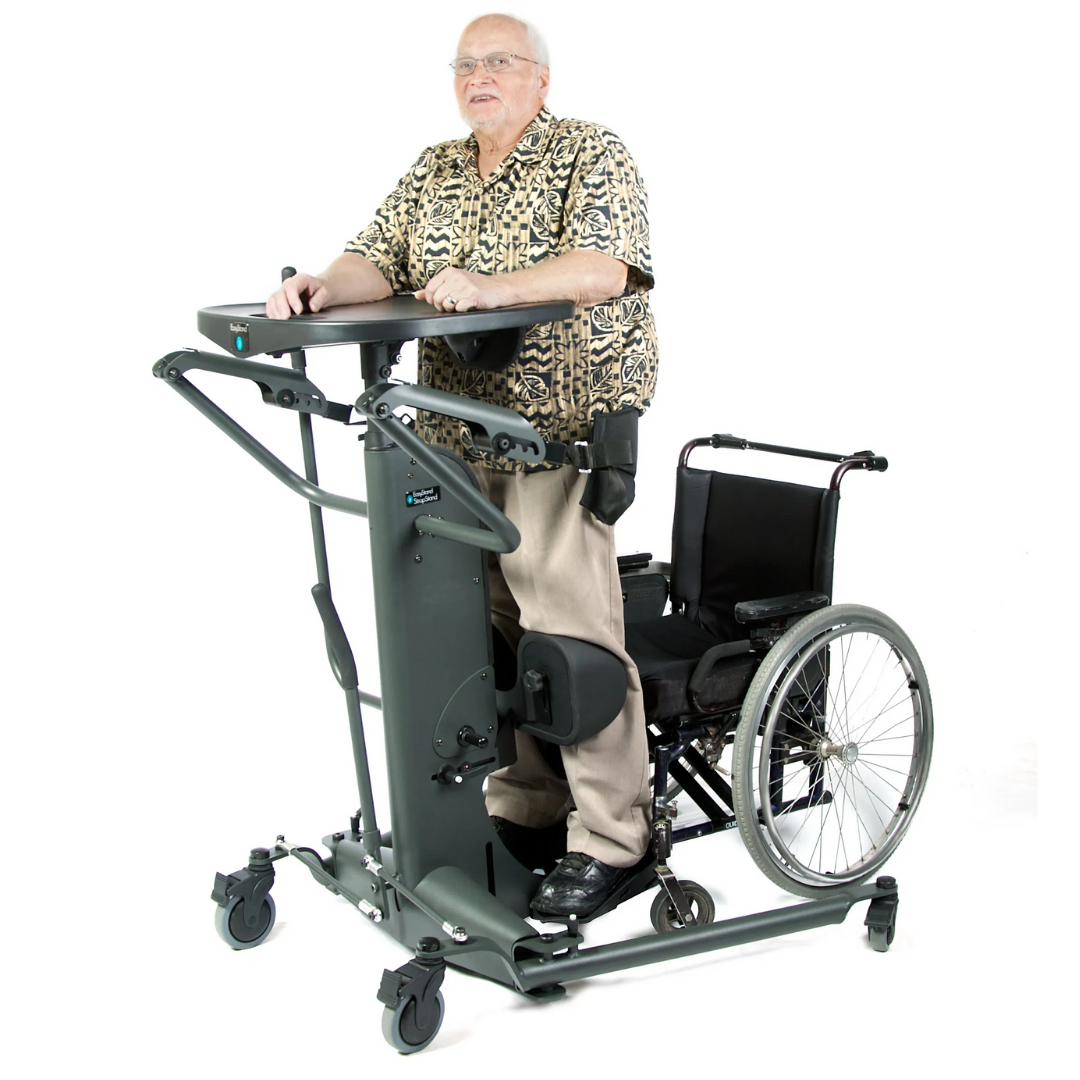

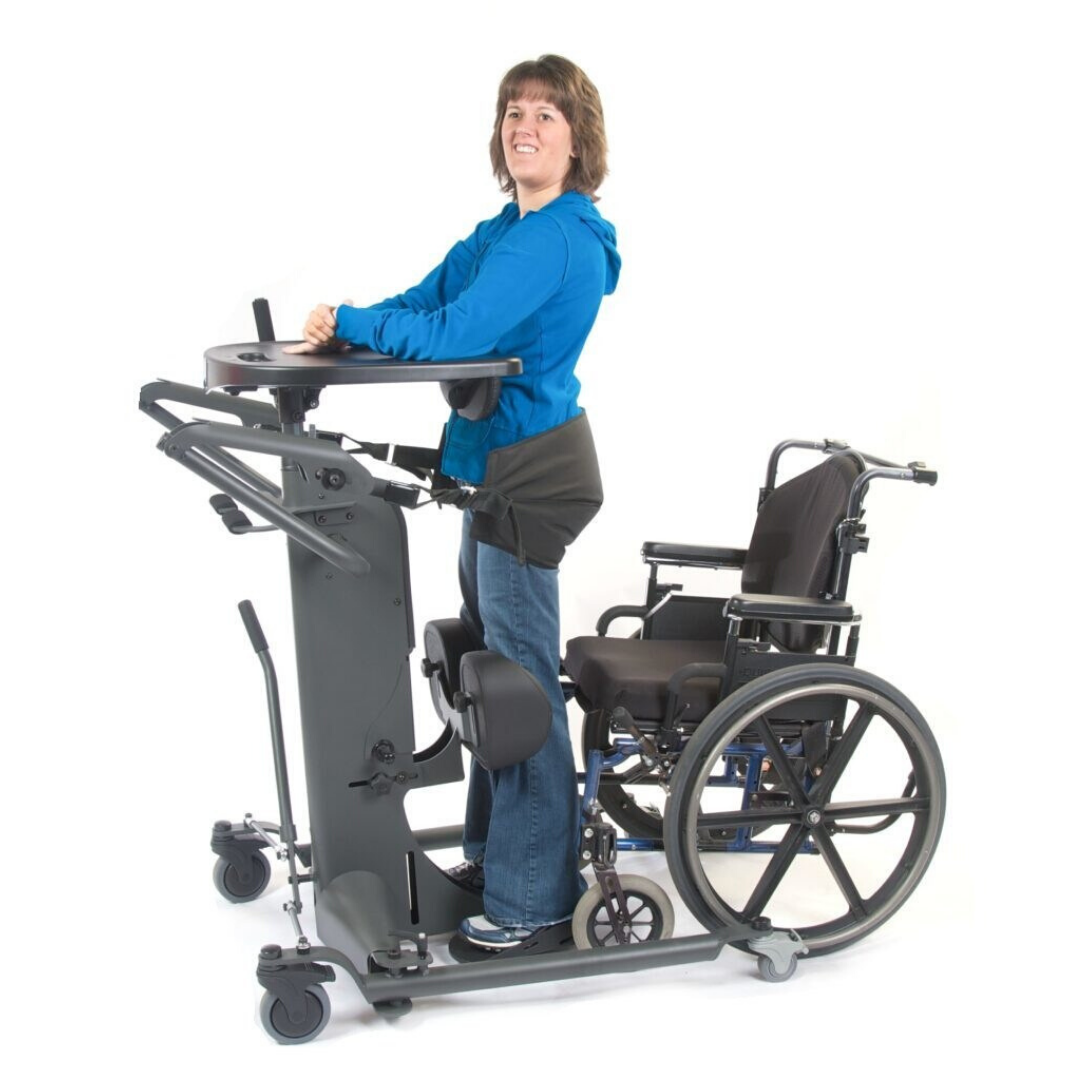

Effortless elevation from your wheelchair, bed, or any seated surface to a standing position.


What sets the EasyStand StrapStand apart from other strap-style standers is its lifting mechanism. The lifting arms gently raise you vertically first, then gradually bring you over center, rather than pulling your knees into the knee pad and forcing the sit-to-stand transition. This approach significantly reduces pressure on the knees.

Key Benefits of the EasyStand StrapStand:

-No need for transfers
-Enables a complete upright, over-center stretch while standing
-Familiarity in long-term care settings, similar to a patient lift
-Simple operation encourages increased compliance
-Swing-out legs accommodate wide wheelchairs



RTD Easystand MiniProductBrochure

Download File

Height range 152cm – 195cm
Weight range 159kg
Kneepad height range (footplate to top of pad) 46cm – 53cm
Kneepad width 23cm
Kneepad depth range (from back of heel) 15cm – 24cm
Front pad depth range (from back of heel) 5cm – 32cm
Front pad height range (from footplate to centre of pad) 102cm – 142cm
Inside width/wheelchair access 58cm
Locking caster diameter 8cm
Standard footprint 86cm x 71cm
Frame colour Oxford grey
Upholstery colour Black
Weight of basic unit 57kg
Lifting strap – small 23cm x 64cm
Lifting strap – large 30cm x 71cm
Lifting strap – Xlarge 36cm x 81cm
Adjustable lifting strap – small 25cm x 66cm
Adjustable lifting strap – large 30cm x 74cm
Adjustable lifting strap – Xlarge 36cm x 81cm
Range of adjustable lifting straps 0cm – 20cm
Tray height (from footplate) subtract 2.5cm for acrylic 107cm – 147cm
Tray size (molded or acrylic) 53cm x 61cm
Swing-out legs footprint 76cm x 98cm
Swing-out legs inside access (wheelchair front width up to) 97cm
Actuator handle extension Adds 18cm
Angle adjustable tray range 0 – 35 degrees
Upper body support strap pad size 14cm x 61cm
Upper body support strap (adjustment range) 84cm – 178cm
Foot straps (range over arch) 18cm – 43cm
Secure foot option (range over arch) 18cm – 43cm
XL footplate – placement area (each foot) 18cm x 36cm
Independent knee pad depth range (from back of heel) 9cm – 20cm
Independent knee pad height range (from footplate) 43cm – 57cm
Independent kneepad size 18cm x 23cm
Independent kneepad Roho insert size 13cm x 19cm
Multi adjustable footplate (height from floor) 2.5cm – 13cm
Multi adjustable footplates toe out adjustment Neutral to +15 degrees
Multi adjustable footplates plantar/dorsiflexion adjustment -20/+20 degrees
