Description

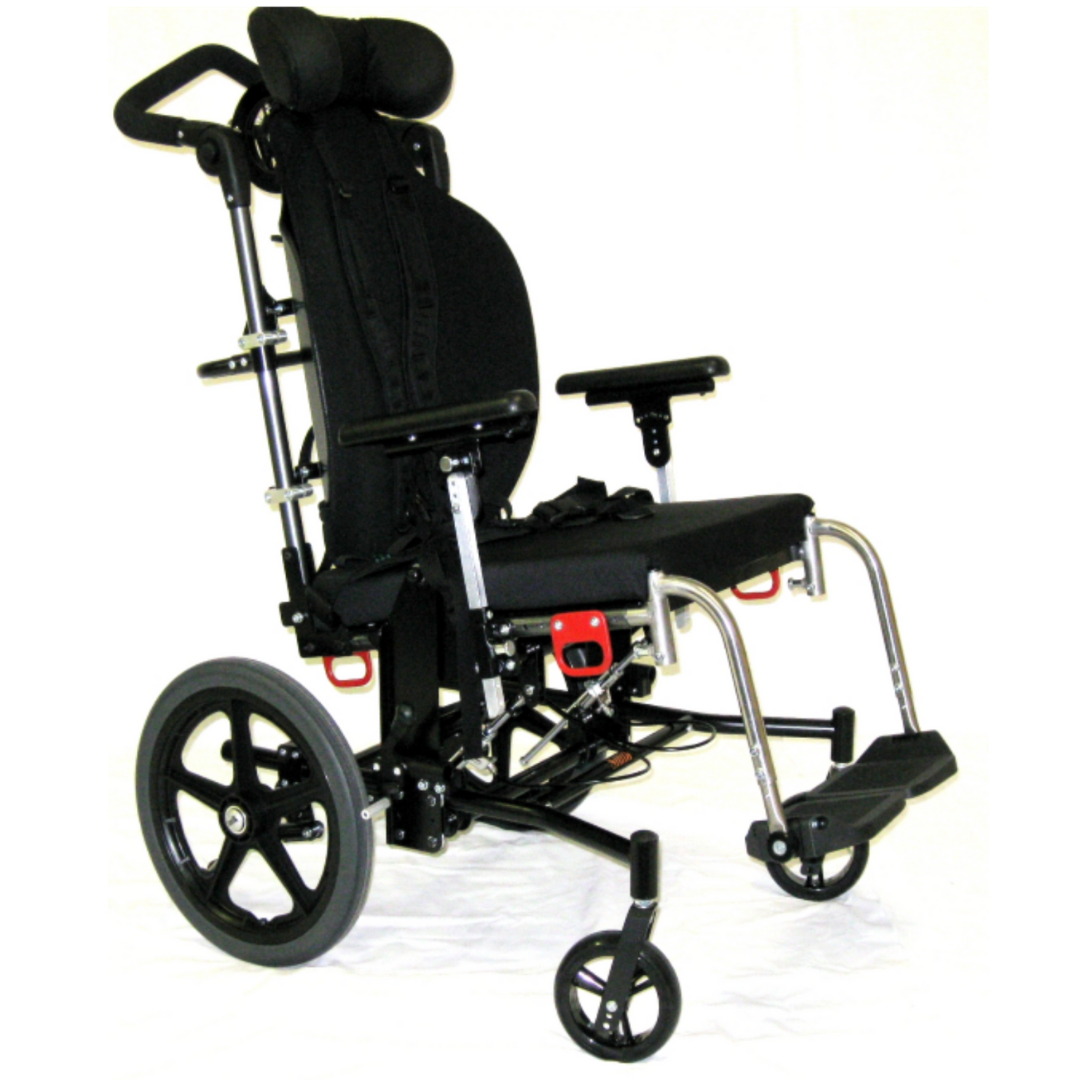

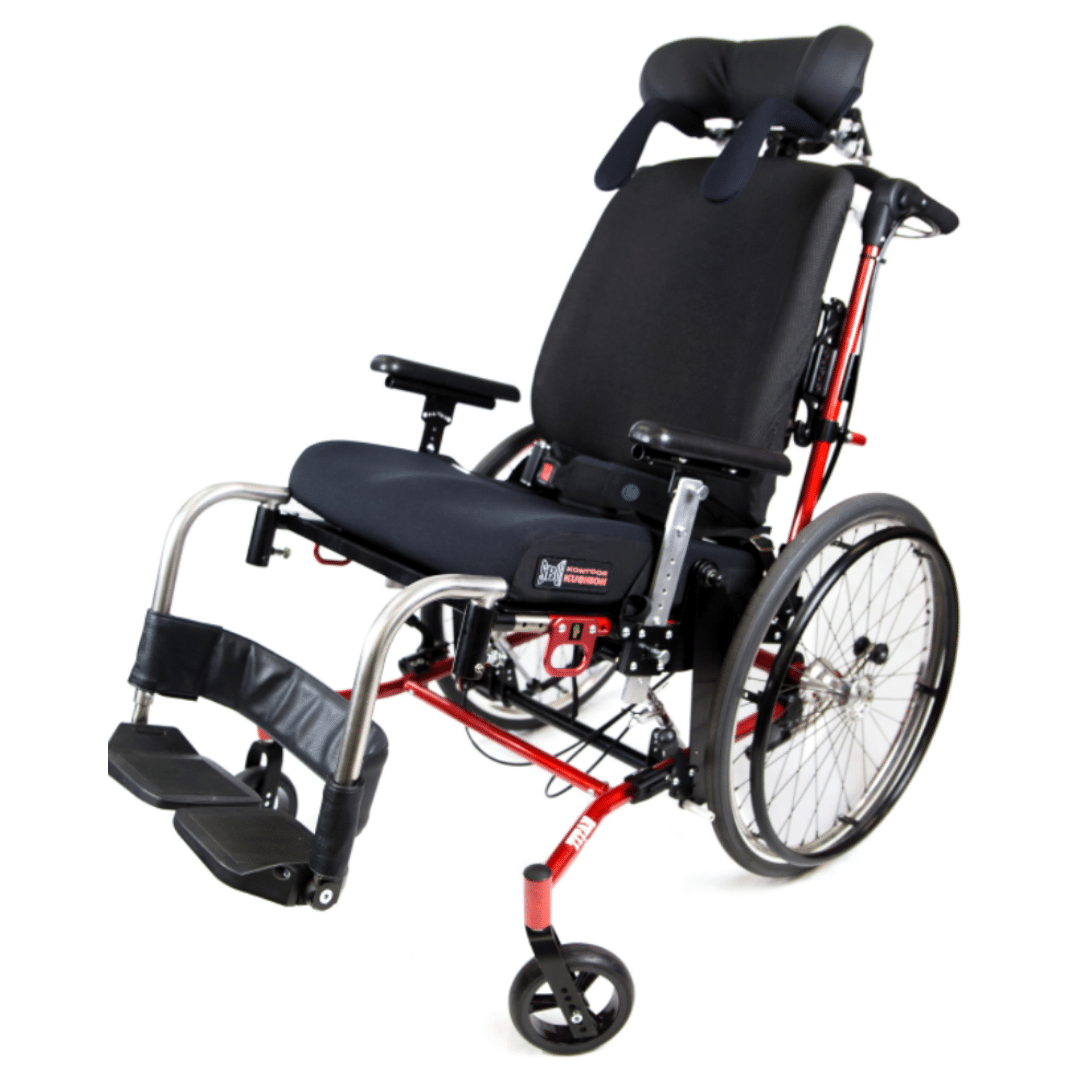

A practical, functional and cost-effective tilt-in-space wheelchair for adults.
Designed and manufactured in Australia, the Smik Titan Tilt-In-Space is setting a new standard with an extensive tilt range and customisable frame adjustments. It is available in seat widths ranging from 12 inches to 20 inches (31 – 51 cm) and featuring a seat depth adjustment exceeding 10 cm. This wheelchair accommodates a diverse range of users; it’s particularly suited for people seeking a wheelchair with generous tilt capabilities, yet without the typical bulk and weight often found in conventional tilt chairs.
| Rear wheels |
16” solid tyre |
| 16” pneumatic tyre |
|
| Camber |
0° |
| Castors |
6” wide soft roll |
| Seat width |
31– 50cm |
| Seat depth |
31 – 55cm + 10cm growth |
| Seat to floor height |
46cms |
| Rear axle position |
Adjustable |
| Backrest height |
Nominate |
| Push handle |
Angle adjustable stroller |
| Foot plates |
Height & angle adjustable, flip-up |
| Parking brake |
push to lock |
| Turning radius |
66cm |
| Overall size Length |
92.5-102.5cm |
| (70° leg rests) Width |
59 – 69cm |
| Push handle height |
82.5 – 122cm |
| Anti-tip |
Spring loaded flip-up |
| Gross weight |
Frame only – 25kg including wheels |
| Seating |
Prescription |
| Max user weight * |
120kg |
Fully Chro Moly hi-strength frameSpecifications include:
- Seat depth +10cm in 25mm increments
- Extending aluminium seat pan
- Wide 6″ Lexan front castors

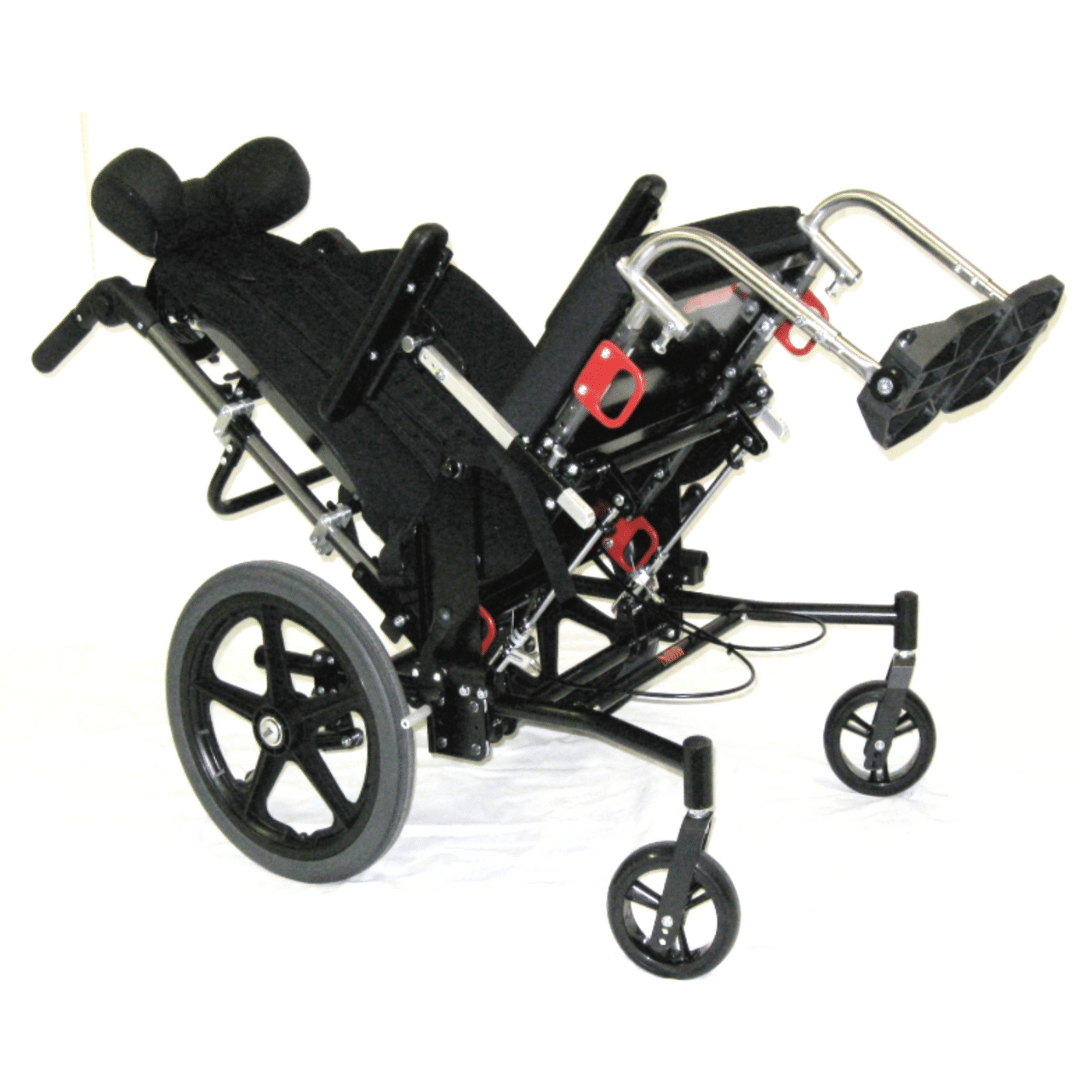

- Adjustable tilt angle +10 degrees to -50 degrees available
- Removable, swing away foot rigging
- Angle adjustable flip up foot plates
- Removable, height and angle adjustable armrests
- Height adjustable backrest spreader bar
